Features

• Both contact and non-contact measurements are possible.
• Equipped with memory function. Up to 20 data can be stored.
• Contact and non-contact measurements are both possible. Two functions in one unit.
• Equipped with analog output and pulse output as standard, and can be used to record rotation speed and as a rotation synchronization signal.
• Equipped with a peak hold function to display the maximum and minimum values during measurement.
• Large LCD with backlight
• Tripod or stand fixture (optional) can be attached. Tripod or stand fixture (optional) can be mounted for continuous measurement.
• It has wide range covering low to high speed rotation.

Specifications

Detection methods	Optical reflective non-contact measurement; contact method (contact adapter supplied)
Reflection detection distance	20 to 300 mm
Display	5-digit LED, with backlight (character height: 10.2 mm)
Operating temperature	0 to 40 °C
Storage temperature	-10 to 50 °C
Power source	Four AAA alkaline batteries or exclusive AC adapter (PB-7090 option)
Battery life	At least 32 hours (when the backlight is OFF) / At least 8 hours (when the backlight is ON)
Outer dimensions	237.2 (W) X 47.5 (H) X 66 (D) mm (with the contact adapter)
Weight (including batteries)	Approx. 329 g (with the contact adapter)

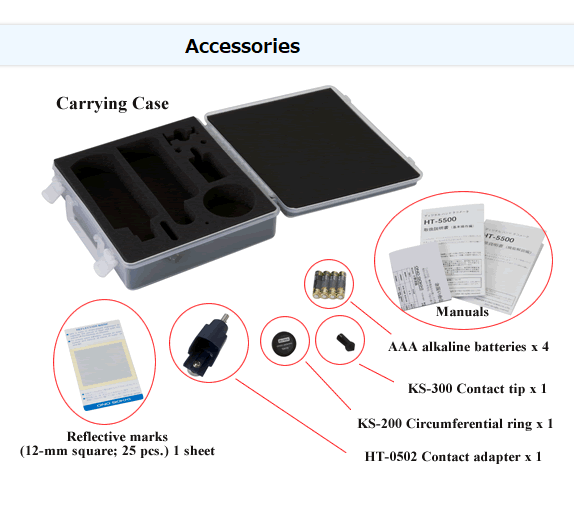

Accessories	Please see the picture below.
